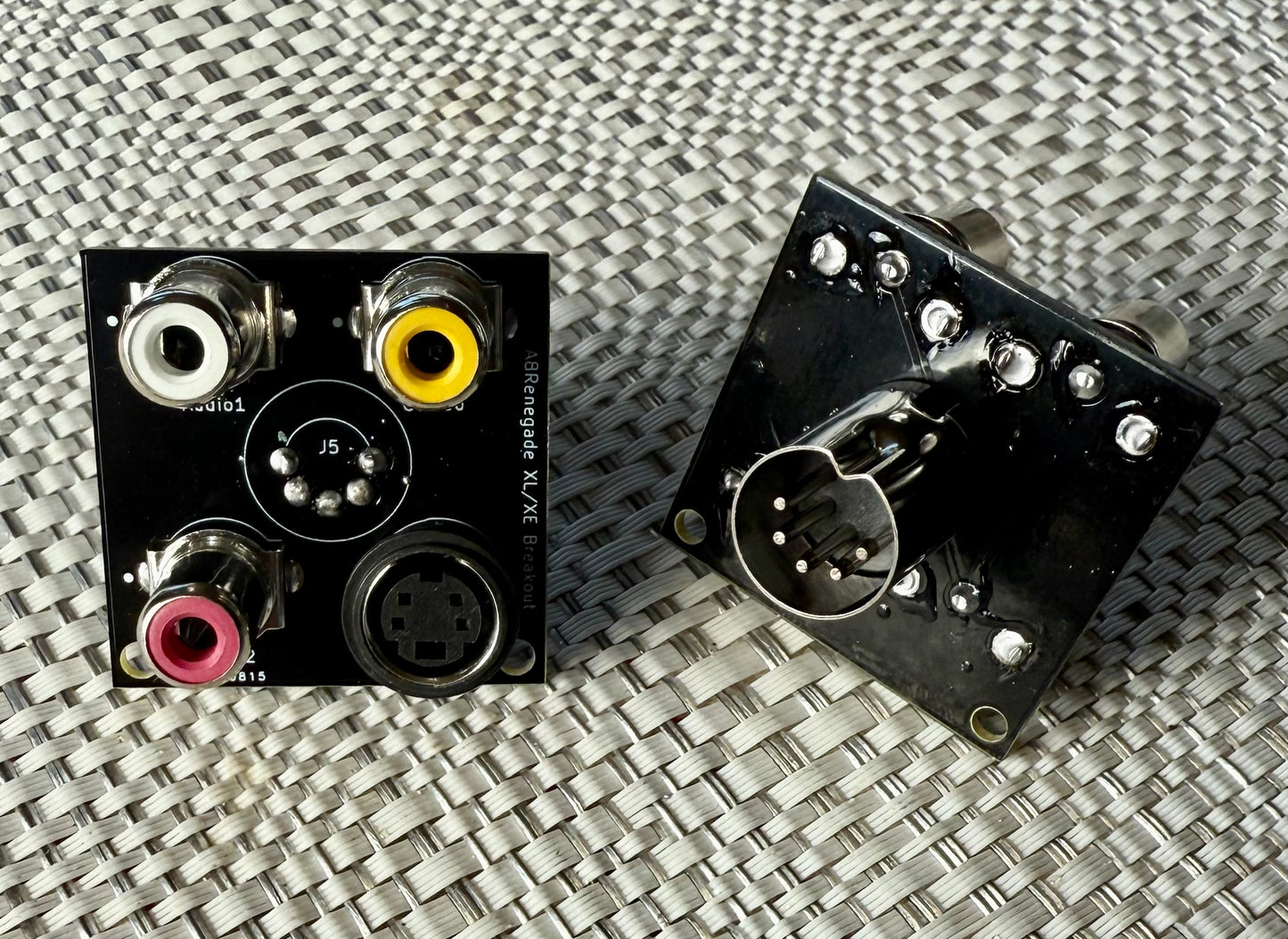

The Atari A/V breakout board

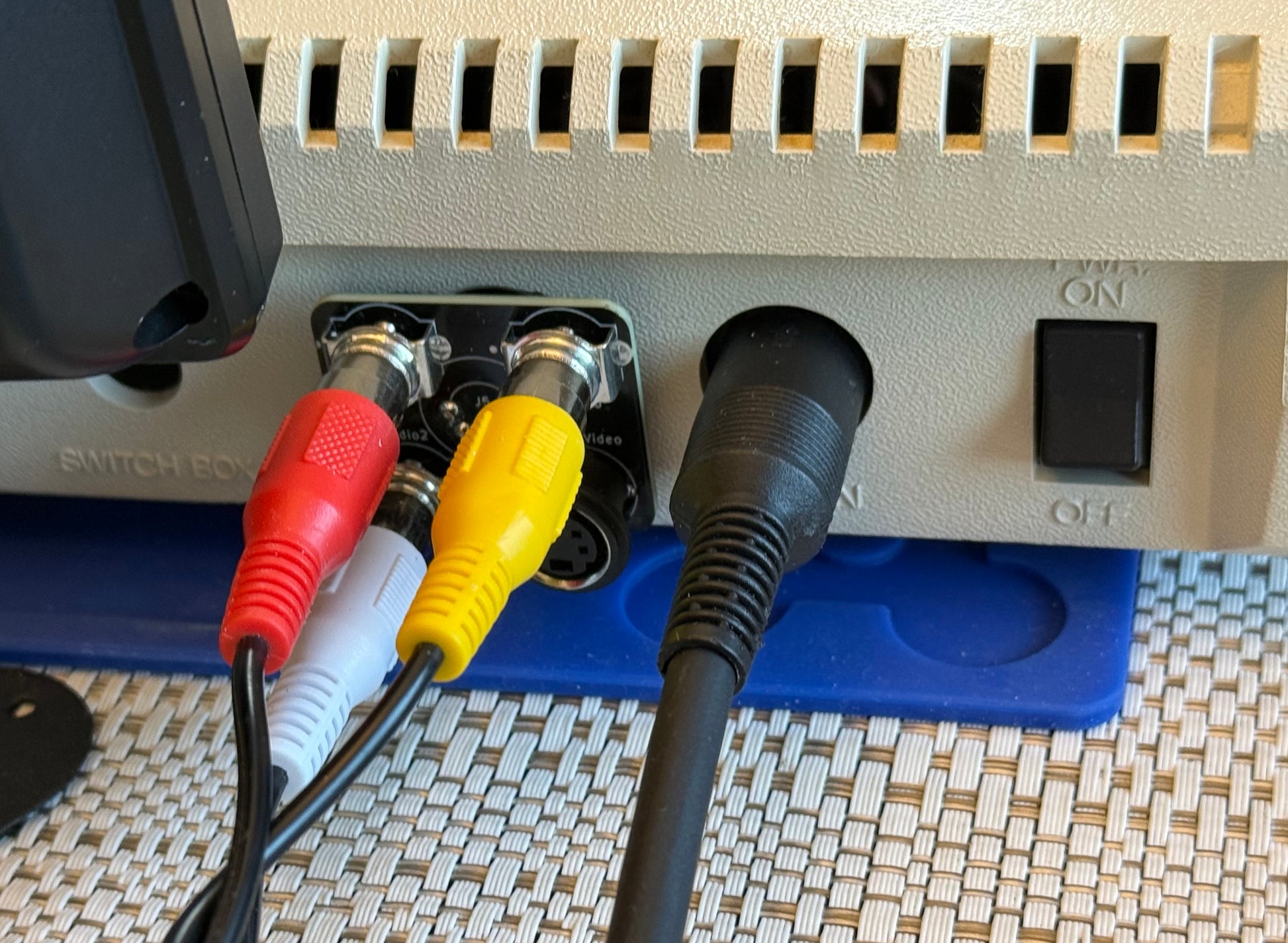

 Easily connect your Atari or Commodore computers to audio and composite video sources.

 Features S-video, composite and bridged mono outputs.

📺 Compatibility Guide

🟢 Full S-Video + Audio (Best Quality)


• Atari 800

• Atari 130XE

• Atari 65XE

• Atari 800XL (with chroma connected)

🟡 Composite Only


• Atari 800XL (without chroma mod)

• Commodore 64

• Commodore 128

🔴 Requires Mod for S-Video


• Atari 600XL (monitor port + chroma mod required)

Note: S-Video requires separate luma/chroma signals. Some systems may require modification.
